The D Series dental 3D printer can accomplish printing tasks efficiently with high quality and reduce the laminated structure on models as much as possible.
Utilizes a sophisticated reflective system to distribute LED light with exceptional uniformity across the LCD panel. The light source uniformity of up to 95% ensures consistent and even exposure across the entire build platform for every print job.
Effectively minimizes Z-axis oscillation (wobble) during the critical printing process, directly resulting in a significant enhancement of both surface finish quality and overall part accuracy.
The Lodden Dental 3D Printer operates using a proprietary software platform that has been independently developed and calibrated specifically for the unique demands of digital dentistry.
This specialized application is engineered to simplify the operator’s workflow, notably through the inclusion of Automated Dental Nesting (Layout) functionality. This intelligent feature efficiently arranges multiple dental parts on the build platform, ensuring optimal resin consumption and maximum printing throughput.
The software comes pre-configured with validated printing parameters for the majority of mainstream dental resins on the market. This comprehensive library of preset profiles ensures accurate and consistent results from the first print. Crucially, to maintain an open and flexible system, the software also grants users the ability to manually add and customize parameters for any additional or specialty resins, thereby accommodating future material innovations and personalized preferences.
A dedicated compensation feature is employed at the pixel level to account for and correct dimensional inconsistencies inherent to the complex geometry of dental anatomy, ensuring superior lateral XY accuracy.
A separate, specialized algorithm actively manages vertical shrinkage and layer depth during curing. This ensures the precise and consistent dimensional integrity of the model’s vertical axis.
|
|
|
|
|---|---|---|---|

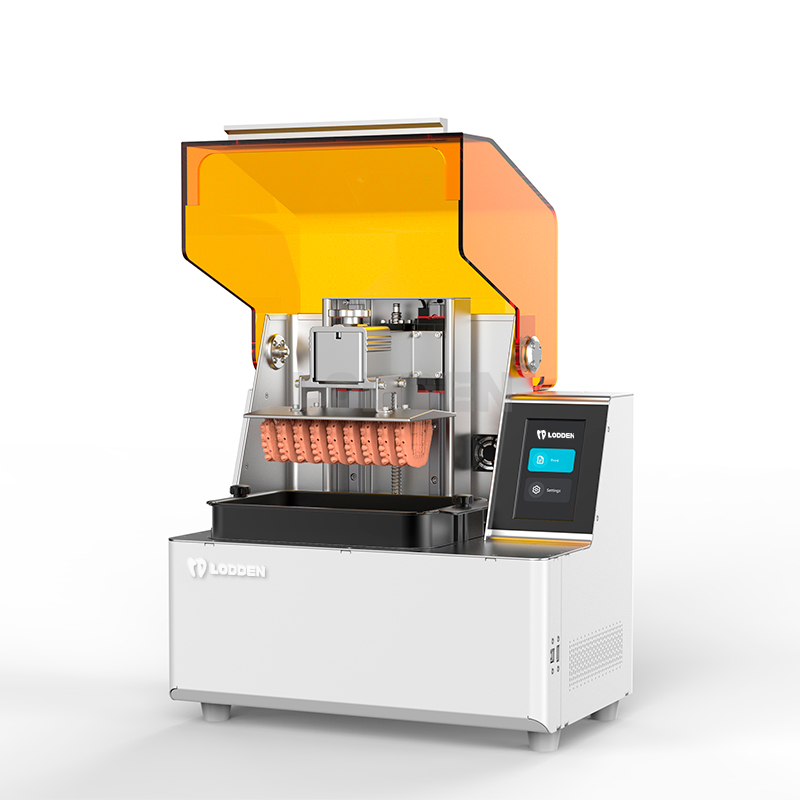

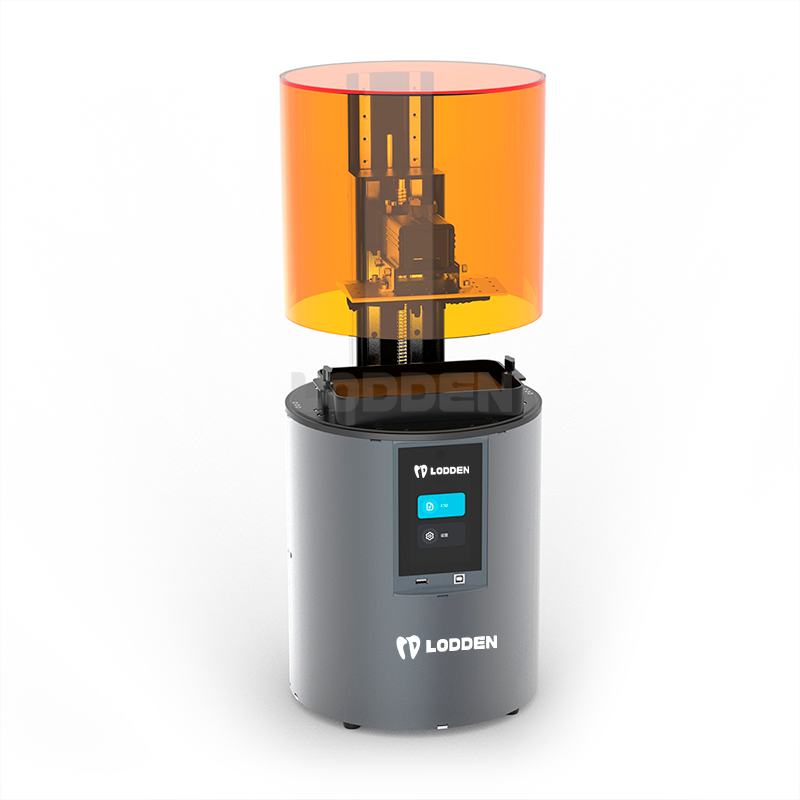

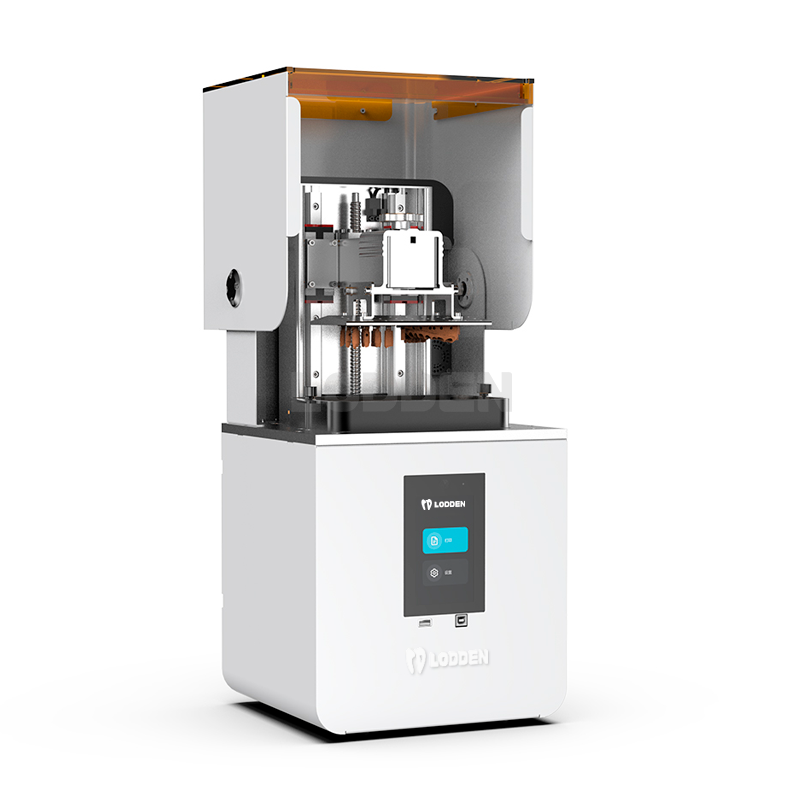

| Model | D158 | D160 | DJ89 Plus |
| X/Y-axis Accuracy | 62µm | 62µm | 29µm |
| Resolution | 2560*1440 | 2560*1440 | 7680*4320 |
| Import | Disk/WIFI | Disk/WIFI | Disk/WIFI |
| Operation System | Win7 or above X64, Mac | Win7 or above X64, Mac | Win7 or above X64, Mac |
| Screen | 5 inch | 5 inch | 5 inch |
| Molding Chamber Heating | 20-45°C | 20-45°C | 20-45°C |
| Light Source Configuration | High power DLP module(wavelength 405nm) | High power DLP module(wavelength 405nm) | UV integrated lamp bead(wavelength 405nm) |
| Print Speed | 1-4S/layer | 1-4S/layer | 1-4S/layer |
| layer Thickness | 25-100µm | 25-100µm | 1-100µm |
| Resin | Castable Wax Resin, Dental model resin, Common Rigid Photosensivie Resin, Standard Resin, Hight hardness, High toughness, Biocompatible Resin | ||
